Paip keluli getah



Ciri -ciri tersendiri

o Lapisan dalaman diperbuat daripada getah fasa lateks Rio, tahan tekanan tinggi, dengan dinding dalaman yang licin dan rintangan aliran rendah.

o getah fasa lateks menyediakan rintangan dan ketahanan haus basah yang sangat baik, mengurangkan kos dan meningkatkan kecekapan pengeluaran.

（China Flange National Standard: GB/T 9119-2010）
No.	Specifications	Product No.	O.D. ΦD1	I.D. ΦD2	Wall Thickness t1	Liner Thickness t2	L1=L2	R
1	DN100PN10R1.5D-α	R-GW-G-1.5D-α-1004	108	80	4	10	100	1.5D	150
2	DN125PN10R1.5D-α	R-GW-G-1.5D-α-1005	133	105	4	10	100	1.5D	188
3	DN150PN10R1.5D-α	R-GW-G-1.5D-α-1006	159	130	4.5	10	100	1.5D	225
4	DN200PN10R1.5D-α	R-GW-G-1.5D-α-1007	219	187	6	10	100	1.5D	300
5	DN250PN10R1.5D-α	R-GW-G-1.5D-α-1008	273	237	8	10	100	1.5D	375
6	DN300PN10R1.5D-α	R-GW-G-1.5D-α-1009	325	279	8	15	100	1.5D	450
7	DN350PN10R1.5D-α	R-GW-G-1.5D-α-1010	377	331	8	15	100	1.5D	525
8	DN400PN10R1.5D-α	R-GW-G-1.5D-α-1011	425	365	10	20	100	1.5D	600
9	DN450PN10R1.5D-α	R-GW-G-1.5D-α-1012	480	420	10	20	100	1.5D	675
10	DN500PN10R1.5D-α	R-GW-G-1.5D-α-1013	530	460	10	25	100	1.5D	750
11	DN600PN10R1.5D-α	R-GW-G-1.5D-α-1014	630	560	10	25	100	1.5D	900
12	DN700PN10R1.5D-α	R-GW-G-1.5D-α-1015	720	646	12	25	100	1.5D	1050
13	DN800PN10R1.5D-α	R-GW-G-1.5D-α-1016	820	746	12	25	100	1.5D	1200

1	DN100PN10R3D-α	R-GW-G-3D-α-1004	108	68	10	10	100	3D	300
2	DN125PN10R3D-α	R-GW-G-3D-α-1005	133	93	10	10	100	3D	375
3	DN150PN10R3D-α	R-GW-G-3D-α-1006	159	119	10	10	100	3D	450
4	DN200PN10R3D-α	R-GW-G-3D-α-1007	219	179	10	10	100	3D	600
5	DN250PN10R3D-α	R-GW-G-3D-α-1008	273	233	10	10	100	3D	750
6	DN300PN10R3D-α	R-GW-G-3D-α-1009	325	275	10	15	100	3D	900
7	DN350PN10R3D-α	R-GW-G-3D-α-1010	377	327	10	15	100	3D	1050
8	DN400PN10R3D-α	R-GW-G-3D-α-1011	425	365	10	20	100	3D	1200
9	DN450PN10R3D-α	R-GW-G-3D-α-1012	480	420	10	20	100	3D	1350
10	DN500PN10R3D-α	R-GW-G-3D-α-1013	530	460	10	25	100	3D	1500
11	DN600PN10R3D-α	R-GW-G-3D-α-1014	630	560	10	25	100	3D	1800
12	DN700PN10R3D-α	R-GW-G-3D-α-1015	720	648	11	25	100	3D	2100
13	DN800PN10R3D-α	R-GW-G-3D-α-1016	820	746	12	25	100	3D	2400

1	DN100PN10R5D-α	R-GW-G-5D-α-1004	108	68	10	10	100	5D	500
2	DN125PN10R5D-α	R-GW-G-5D-α-1005	133	93	10	10	100	5D	625
3	DN150PN10R5D-α	R-GW-G-5D-α-1006	159	119	10	10	100	5D	750
4	DN200PN10R5D-α	R-GW-G-5D-α-1007	219	179	10	10	100	5D	1000
5	DN250PN10R5D-α	R-GW-G-5D-α-1008	273	233	10	10	100	5D	1250
6	DN300PN10R5D-α	R-GW-G-5D-α-1009	325	275	10	15	100	5D	1500
7	DN350PN10R5D-α	R-GW-G-5D-α-1010	377	327	10	15	100	5D	1750
8	DN400PN10R5D-α	R-GW-G-5D-α-1011	425	365	10	20	100	5D	2000
9	DN450PN10R5D-α	R-GW-G-5D-α-1012	480	420	10	20	100	5D	2250
10	DN500PN10R5D-α	R-GW-G-5D-α-1013	530	460	10	25	100	5D	2500
11	DN600PN10R5D-α	R-GW-G-5D-α-1014	630	560	10	25	100	5D	3000
12	DN700PN10R5D-α	R-GW-G-5D-α-1015	720	648	11	25	100	5D	3500
13	DN800PN10R5D-α	R-GW-G-5D-α-1016	820	746	12	25	100	5D	4000
	(Note: The angle “α” in the product code should be replaced accordingly with 30°/45°/60°/90°.)

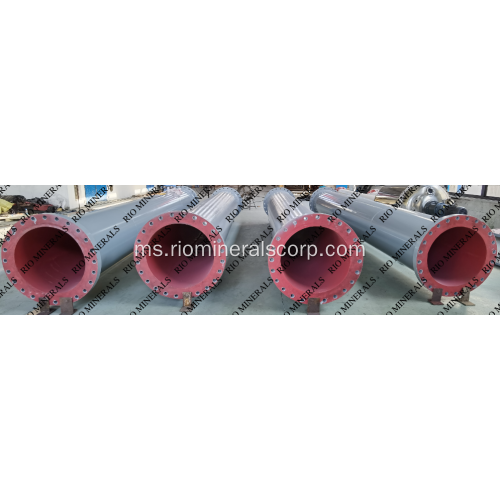

Pipa keluli berbaring getah tahan lasak
